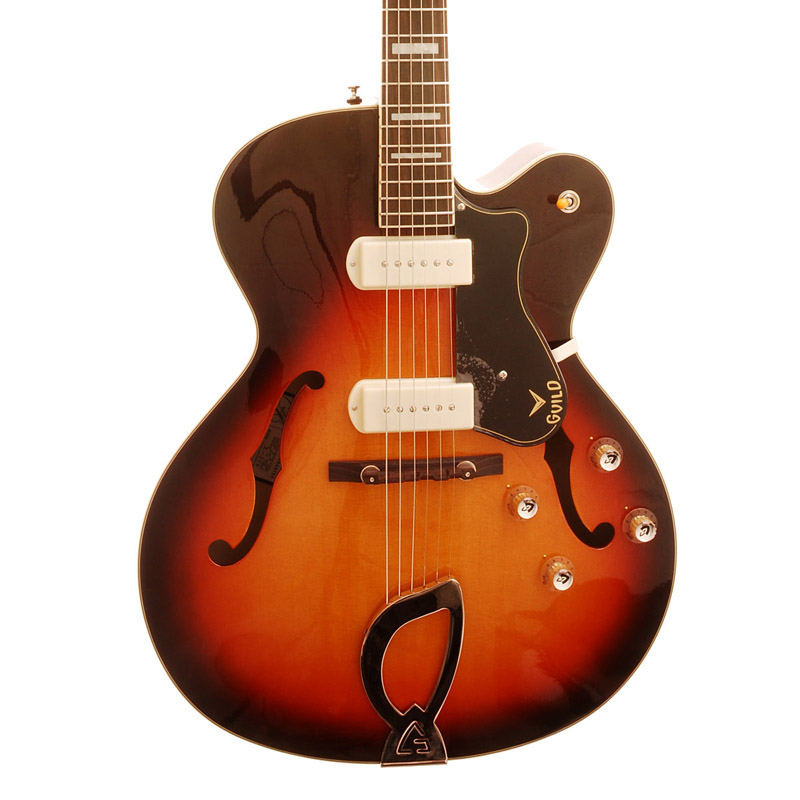

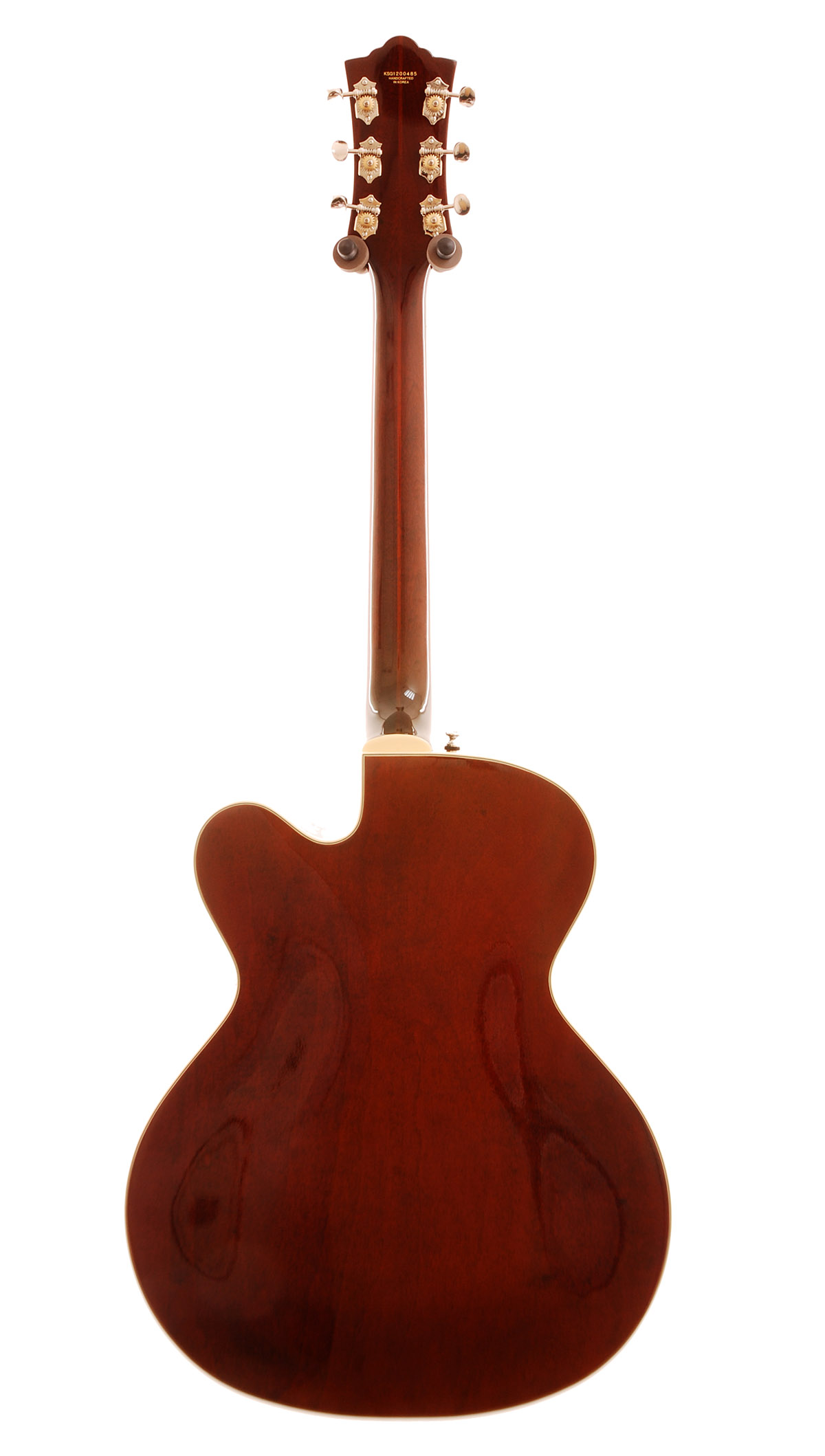

Guild X-175 Manhattan

Click Image To Enlarge +

Guild X-175 ManhattanGuild X-175 ManhattanGuild X-175 Manhattan

Guild X-175 Manhattan

Includes Hardcase


Description of Guild X-175 Manhattan

Proudly introducing 8 classic Guild guitar styles from the 50's and 60's that have helped shape popular music from the time of their creation and beyond! The return of these timeless and distinctive Guild models has been long awaited but they are here now and they are truly awesome!

The new X175 Manhattan is a beautiful recreation of the Guild 175 from the late 50's. Lovers of Jazz, swing and rockabilly have been drooling over these guitars ever since they were first released and now they are back with a twang!

An extraordinary instrument for the swinging soloist and technician, Guild’s X-175B Manhattan is a masterpiece of the guitar maker’s art. It presents the same exceptional appointments as its brother, the X-175, including a gracefully sculpted hollow body, rock-solid three-piece neck and electrifying dual single-coil pickups, but also features the addition of a Guild Bigsby® vibrato tailpiece. Features include a 17” x 3.25” hollow body, laminated spruce top, maple back and sides, three-piece mahogany/maple/mahogany neck, 24.75” scale length, rosewood fingerboard with 9.45” radius and 20 “vintage tall” frets, pearloid block inlays, dual single-coil pickups, three-way pickup toggle switch, two volume and two tone controls, Adjusto-Matic™ bridge on rosewood base, Guild Bigsby® vibrato tailpiece, Grover® Sta-Tite™ tuning machines and nickel-plated hardware




We accept:
Visa Visa Electron Mastercard Maestro JCB AMEX

See what our customers say about us
Still not sure?
Need more information?


Give us a call on 0131 667 8241 and speak to one of our shop staff. We are always happy to help, whether you need advice or just want to ask a question,
or contact us through email if you prefer.

Click Here to contact us.

379-5000-837
Body Material: Laminated Spruce Top with Laminated Maple Back and Laminated Mahogany Sides
Body Shape: Guild X1-75
Body Back: Arched Laminated Maple
Body Sides: Laminated Maple
Body Top: Arched Laminated Spruce
Body Finish: 3795000837
Gloss Polyurethane
Bracing: Parallel Tone Bars
Purfling: Black/Ivory White
Body Depth: 3.125" (80 mm)
Body Length: 21" (432 mm)
Body Width Lower Bout: 17" (432 mm)
Body Binding: Ivory White with Black/White Purfling
Neck Shape: Vintage Soft "U"
Number of Frets: 20
Fret Size: 6105 (.055" Tall x .090" Wide)
Position Inlays: Aged Pearloid Blocks
Fingerboard Radius: 9.45" (240 mm)
Fretboard: Rosewood
Neck Material: 3-Piece Mahogany/Maple/Mahogany
Neck Finish: Gloss Polyurethane
Nut Width: 1.650" (42 mm)
Scale Length: 24.75" (628 mm)
Headstock: Newark St.
Neck Binding: 1-Ply Ivory White
Truss Rods: Dual-Action Head Adjust
Pickup Configuration S/S
Bridge Pickup: Guild "Frequency Tested" Single-Coil
Neck Pickup: Guild "Frequency Tested" Single-Coil
Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Controls: Volume 1. (Neck Pickup), Tone 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone 2. (Bridge Pickup)
Hardware Finish: Nickel-Plated
Bridge: Compensated Rosewood with Rosewood Base
Tuning Machines: Grover Sta-Tite
String Nut: Bone
Pickguard: Opaque Plexi Pickguard with Guild Logo
  • Tools:
Truss Rod Wrench: Yes
  • Miscellaneous:
Strings: D'Addario EXL115 Nickel Wound, Medium/Blues-Jazz Rock, (.011-.049 Gauges)
  • Unique Features: Single Cutaway Hollow Body; Guild "Harp" Tailpiece; Chesterfield Headstock Inlay
  • Accessories:
Control Knobs: Clear Amber Volume & Tone
  • Model Name: X-175 Manhattan
  • Series: Newark St. Collection
  • Colour / Part #:X-175 Manhattan, Antique Burst, with Case
  • Body
  • Neck:
  • Electronics:
  • Hardware:
